01 Company Profile

  Guangdong Beyond Lighting Co., Ltd. was established in 2011 and is located in Qingyuan High-tech Development Zone. It is a high-tech enterprise integrating R&D, production, sales and service. The company has focused on the research and development of LED stage lighting since its inception, and has been committed to the research and development of LED and moving head dye series products for a long time. It has passed ISO management certification and has a number of national patents and intellectual property rights, including utility model patents, appearance patents, trademarks, and software copyrights. All products have obtained the European Community CE certification.

  Beyond is committed to strict product development and strict quality control. We will continue to improve the quality and ability of our team members to meet market demand and ensure customer satisfaction. Adhering to the ingenuity and creating craftsman quality; firm belief and being the leader of light are the purpose of Yueyang people. Yueyang people continue to improve product value and service to ensure that customers who own our products can stand at the forefront of the industry!

02Showroom Show

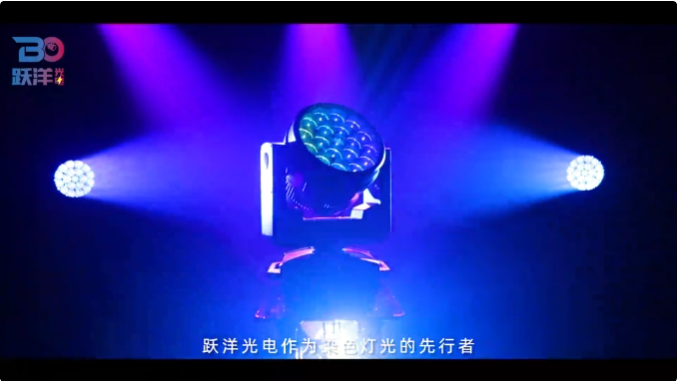

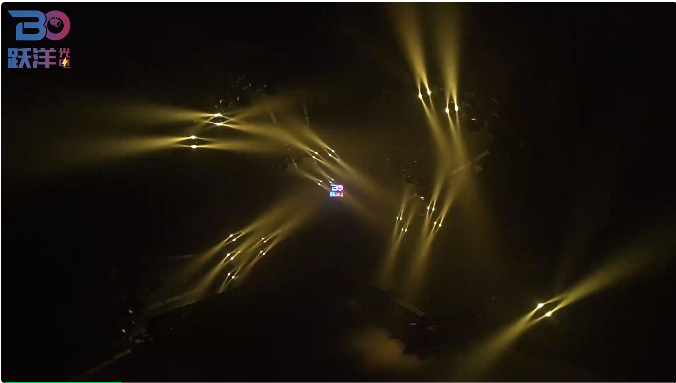

  Beyond Lightings' LED moving head wash lamps bring you a visual feast with their excellent performance and unique design. From soft wash lights to dazzling dynamic effects, each beam of light has been carefully calculated and debugged to ensure the best light and shadow effects!

03 Product Introduction

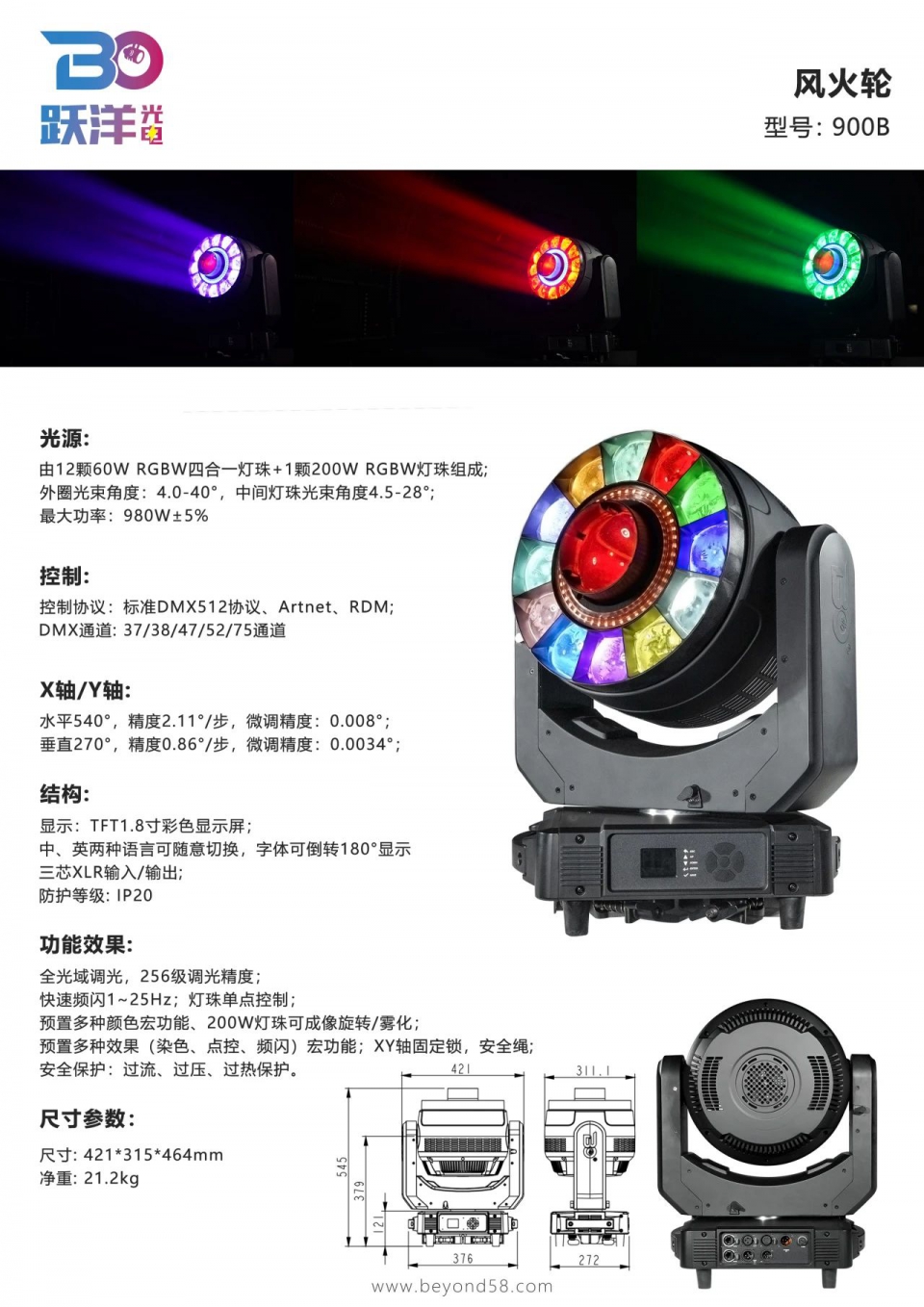

01 Hot Wheels-900B

Light source:

Composed of 12 60W RGBW four-in-one lamp beads + 1 200WRGBW lamp bead. Outer beam angle: 4.0-40°, middle lamp bead beam angle 4.5-28°: Maximum power: 980W±5%

Control:

Control protocol: standard DMX512 protocol, Artnet, RDM;

DMX channel: 37/38/47/52/75 channels

X-axis/Y-axis:

Horizontal 540°, accuracy 2.11°/step, fine-tuning accuracy: 0.008°:

Vertical 270°, accuracy 0.86°/step, fine-tuning accuracy: 0.003 4°:

Structure:

Display: TFT 1.8-inch color display;

Chinese and English languages can be switched at will, and the font can be reversed 180° for display

Three-core XLR input/output;

Protection level: IP20

Function effect:

Full light range dimming, 256-level dimming accuracy;

Fast strobe 1~25Hz; Single-point control of lamp beads;

Preset multiple color macro functions, 200W lamp beads can be imaged and rotated/atomized;

Preset multiple effects (dyeing, point control, strobe) macro functions; XY axis fixed lock, safety rope;

Safety protection: overcurrent, overvoltage, overheating protection.

Dimension parameters:

Dimensions: 421*315*464mm

Net weight: 21.2kg

02 Waterproof Phantom-S1400

Light source:

1152 1W RGBW lamp beads + 192 3W white lamp beads + 96 3W amber lamp beads;

Optical system: flat angle 120°; electronic atomized glass lens;

Maximum power: 460W±5%

Control:

Master control mode: 9/17/27/36;

Pixel mode: 26/50/101/104/57/177/182;

DMX+Artnet pixel mode: 2+24/2+48/2+96/5+96/

8+96/13+44/6+176/1+176;

Control protocol: standard DMX512 protocol, Artnet, RDM

Structure:

Display: TFT 1.8-inch color display;

Chinese and English languages can be switched at will, and the font can be reversed 180° for display

Three-core XLR input/output;

Protection level: IP65

Function effect:

Full light range dimming, 256-level dimming accuracy; fast strobe 1~25Hz; 1152 1W divided into 32 segments, 192 3W divided into 32 segments, 96 3W divided into 16 segments; preset multiple color macro functions; preset multiple effects (dyeing, pattern, segment control, strobe) macro functions; strobe light;

Safety protection: over-current, over-voltage, over-heat protection, safety rope.

Dimension parameters:

Dimensions: 997*148*156mm

Net weight: 11kg

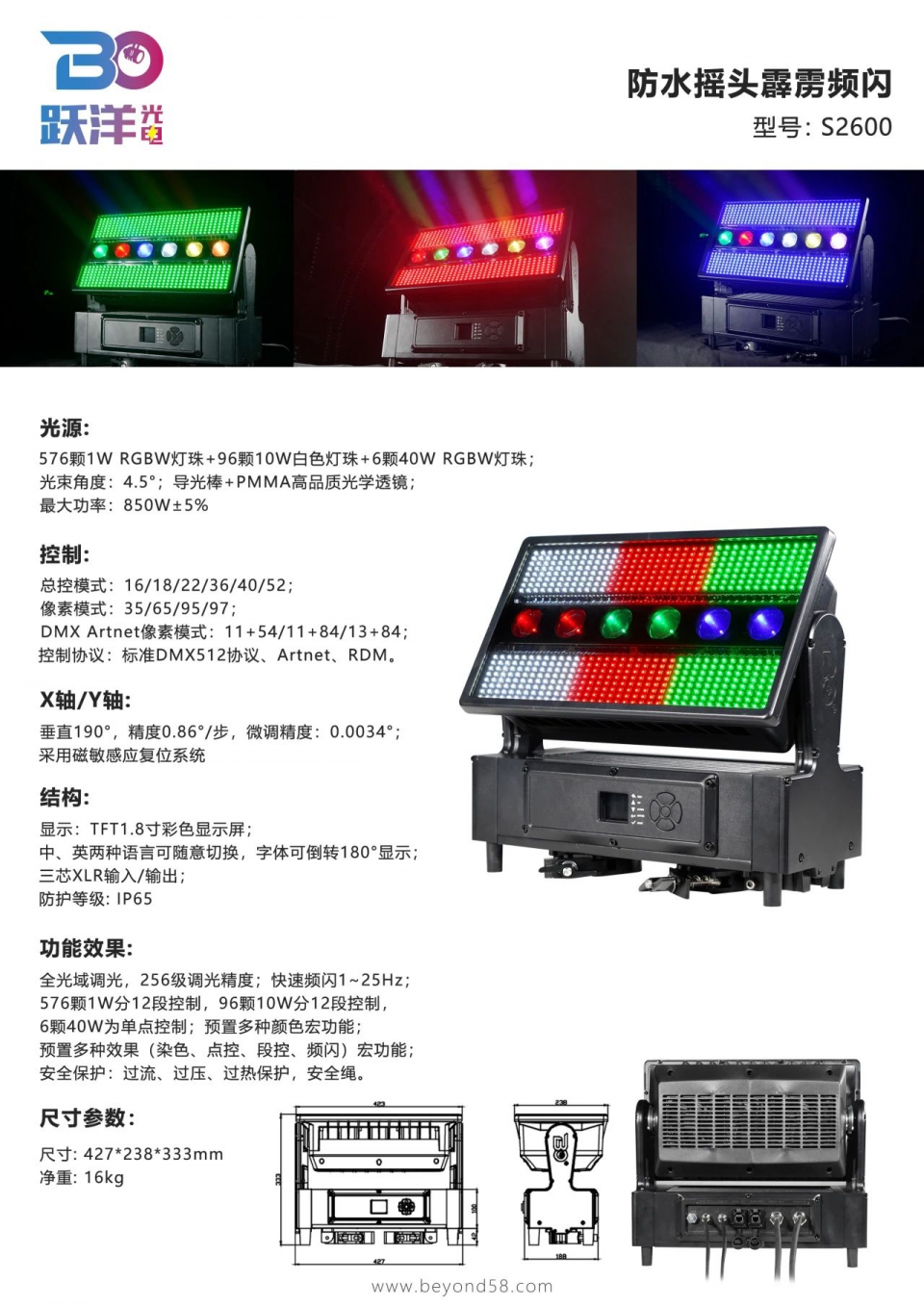

03 Waterproof Shaking Head Thunderbolt Strobe-S2600

Light source:

576 1W RGBW lamp beads + 96 10W white lamp beads + 6 40W RGBW lamp beads;

Beam angle: 4.5°; Light guide rod + PMMA high-quality optical lens;

Maximum power: 850W±5%

Control:

Master control mode: 16/18/22/36/40/52;

Pixel mode: 35/65/95/97;

DMX Artnet pixel mode: 11+54/11+84/13+84;

Control protocol: standard DMX512 protocol, Artnet, RDM.

X-axis/Y-axis:

Vertical 190°, accuracy 0.86°/step, fine-tuning accuracy: 0.0034°; magnetic sensitive reset system is adopted

Structure:

Display: TFT 1.8-inch color display screen;

Chinese and English languages can be switched at will, and the font can be reversed 180° for display;

Three-core XLR input/output;

Protection level: IP65

Function effect:

Full light range dimming, 256-level dimming accuracy; fast strobe 1~25Hz; 576 1W divided into 12 segments, 96 10W divided into 12 segments, 6 40W for single point control; preset multiple color macro functions;

Preset multiple effects (dyeing, point control, segment control, strobe) macro functions; safety protection: over-current, over-voltage, over-heat protection, safety rope.

Dimension parameters:

Dimensions: 427*238*333mm Net

Weight: 16kg

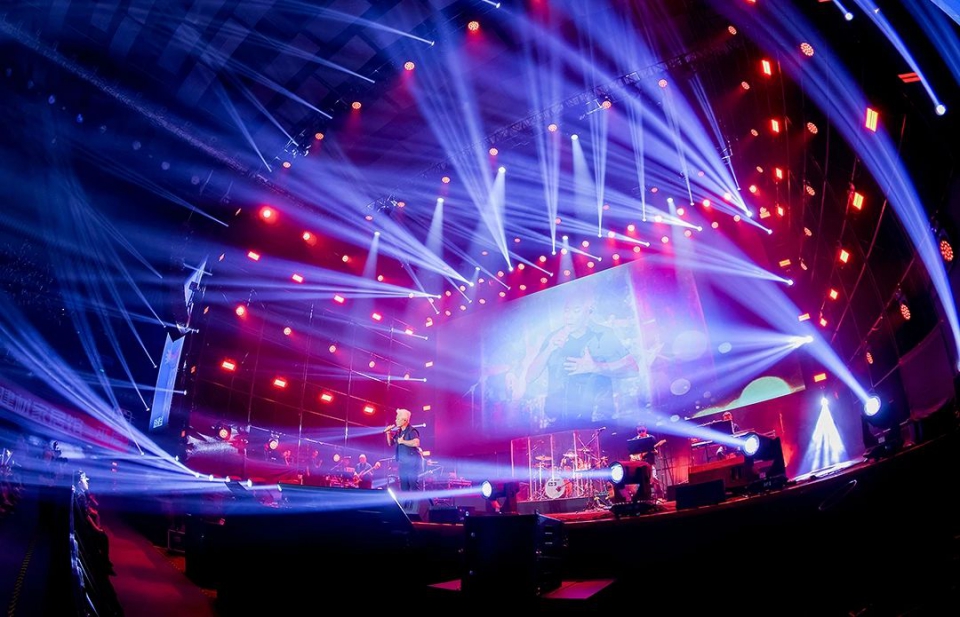

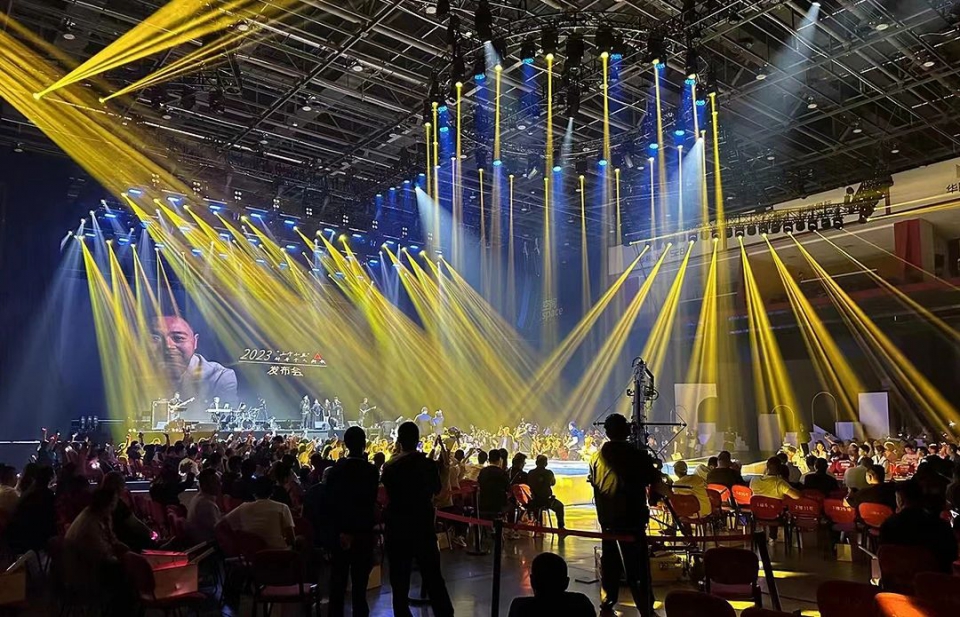

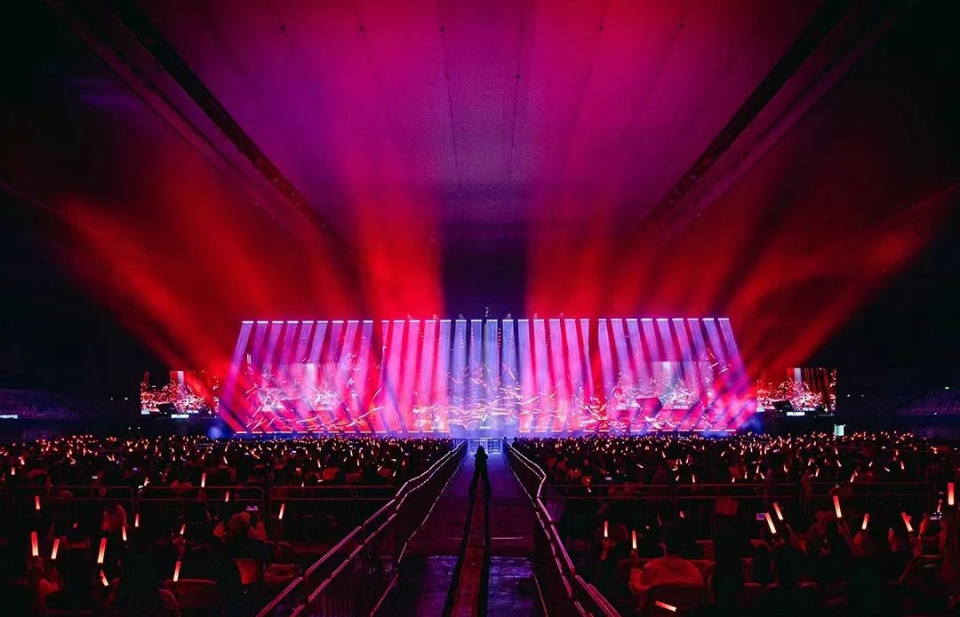

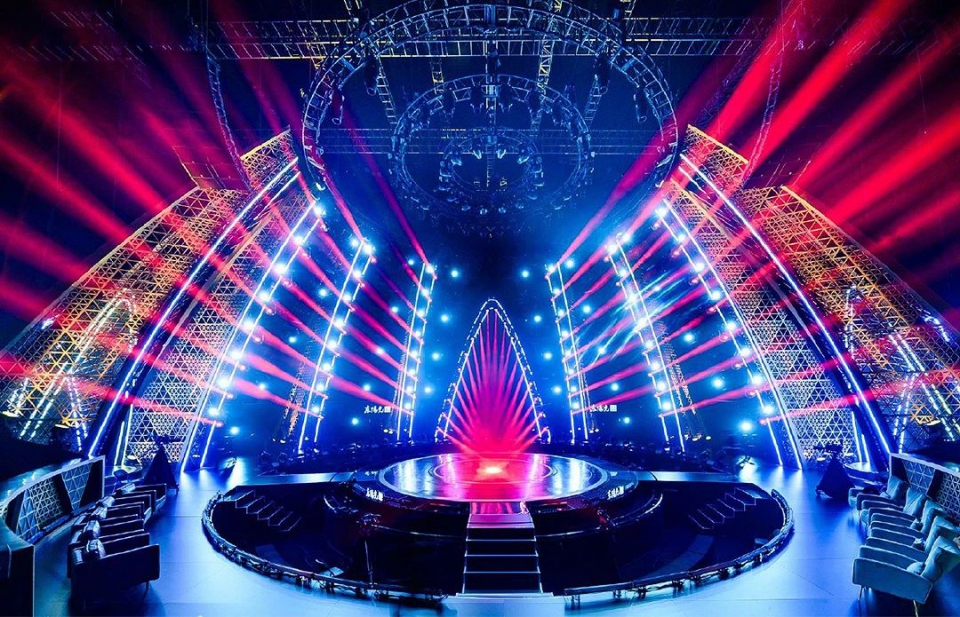

04Product application case display

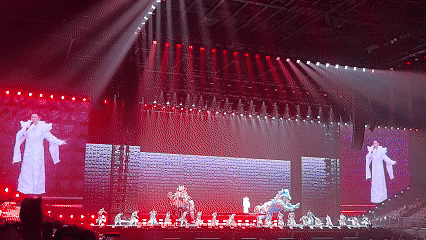

God-given voice

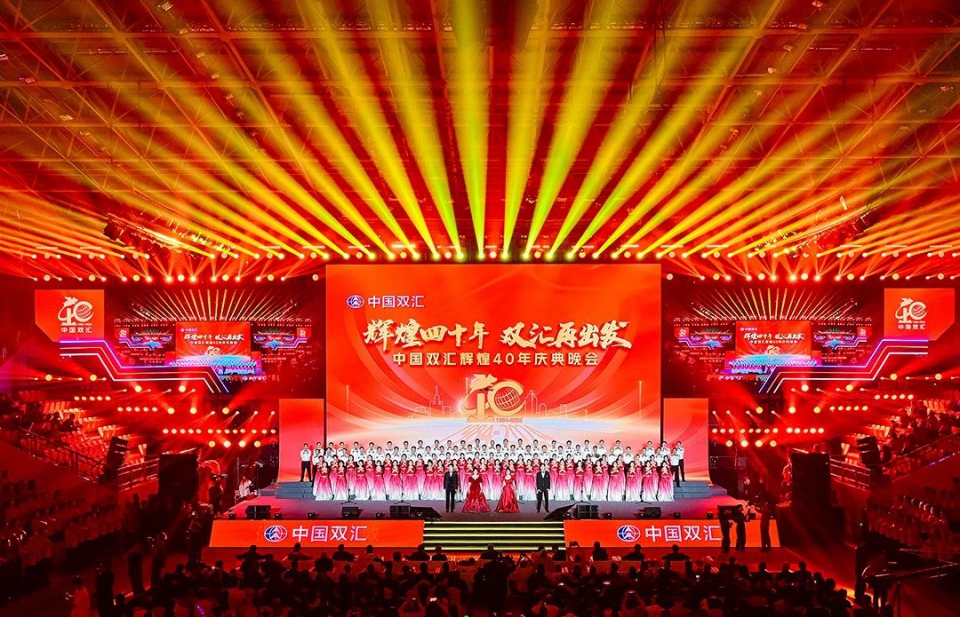

China Shuanghui 40th Anniversary Celebration Gala

Eric Moo's "Red Dust Comes and Goes Dreams Are Too Silly" Concert Tour

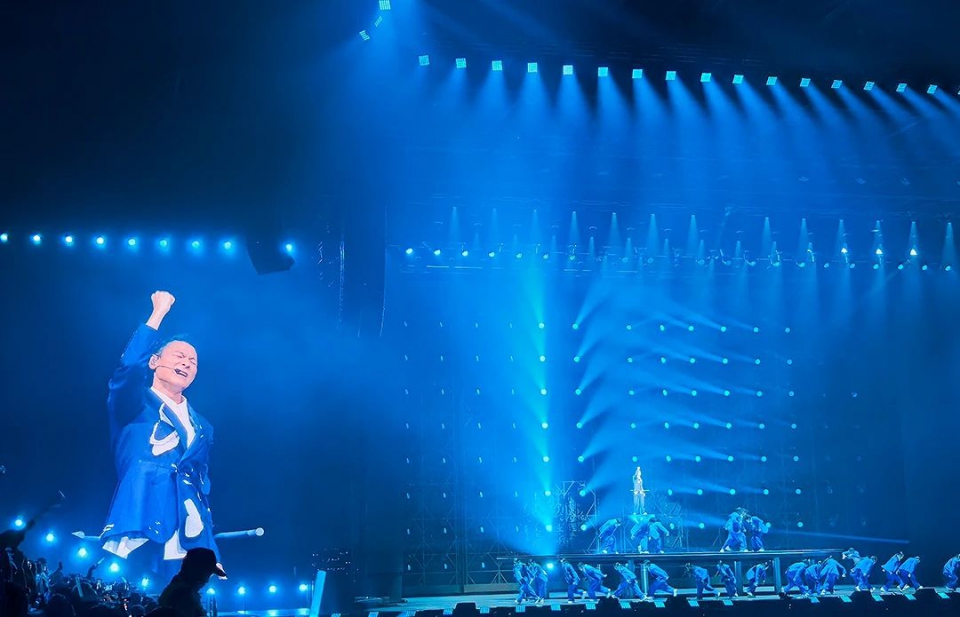

Andy Lau Concert Tour—Guangzhou

Zhou Shen Bird's Nest Concert—Beijing

"Three Clowns" Zhong Wei New Song Release Conference

Mayuan Poets Concert—Beijing

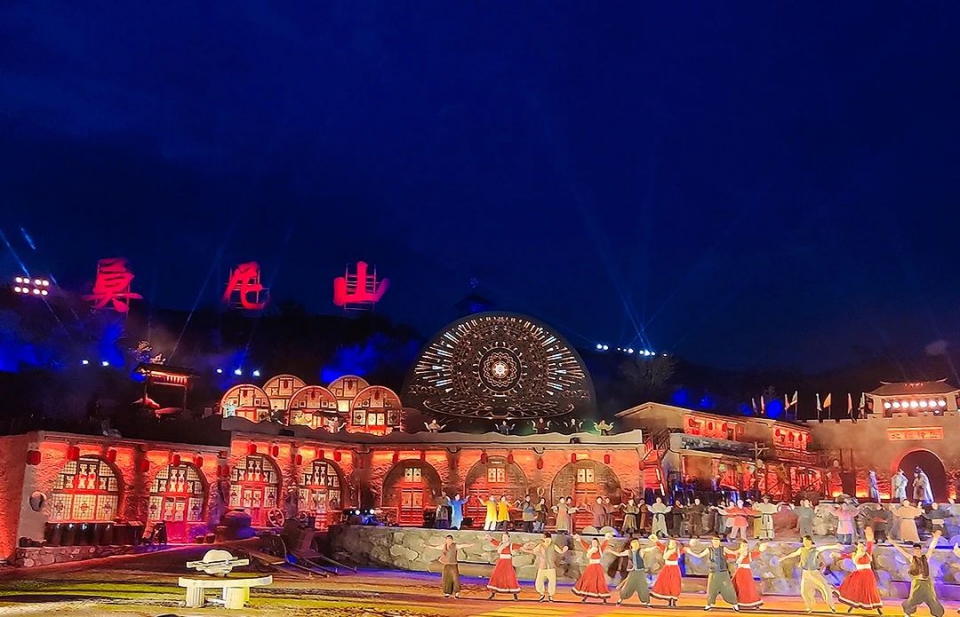

Hohhot large-scale live-action drama "A Tribute to Moni Mountain"

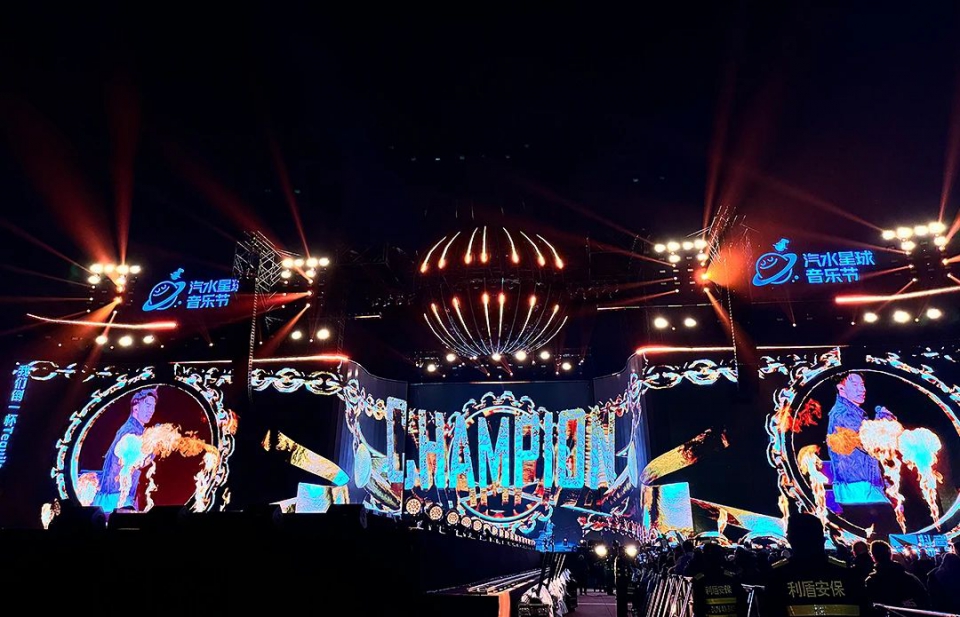

Qingdao Tik Tok Soda Planet Music Festival

  In many stage performances,  Guangdong Beyond Lighting Co., Ltd. has won wide acclaim for its outstanding performance. Whether it is a large-scale concert, theater performance, commercial event, or celebration party, it can easily cope with it, making your performance more colorful and becoming your rare stage weapon!

  Choosing  Guangdong Beyond Lighting Co., Ltd. Shading Head means choosing a professional stage lighting solution. Let us light up the stage together and make every performance an unforgettable bright night!
