Guangzhou UPLIGHT Stage Equipment Co., Ltd

Guangzhou UPLIGHT Stage Equipment Co., Ltd

Guangzhou UPLIGHT Stage Equipment Co., Ltd. is located in Panyu District, Guangzhou. Founded in 2007, UPLIGHT is a high-tech production enterprise integrating R&D, production and sales of professional stage and film lighting fixtures, outdoor lighting fixtures and outdoor cultural tourism lamps.

UPLIGHT has passed the certification of "National High-tech Enterprise", and is the director unit of Guangdong Performing Arts Industry Chamber of Commerce, the director unit of the Performing Arts Equipment Professional Committee of Hunan Chamber of Commerce in Guangdong Province, the member unit of China Performing Arts Equipment Technology Association, Guangdong Stage Art Research Association, and the certification unit of Professional Lighting (Guangzhou) Training and Assessment Center of the Ministry of Industry and Information Technology.

UPLIGHT implements scientific, professional and standardized enterprise management, and has passed the ISO 9001 quality management system, ISO 14001 environmental management system, and ISO18001 occupational health management system certification. A number of the company's products have obtained appearance patent certificates and utility model patent certificates. The company's products have obtained CE and ROHS certification, and have passed the testing of Guangzhou Quality Supervision and Inspection Institute, and its performance and technical indicators have reached the industry-leading level. Sales and service cover more than 20 countries and regions in China, Asia, Europe, America, Africa and so on.

2025 Product Introduction

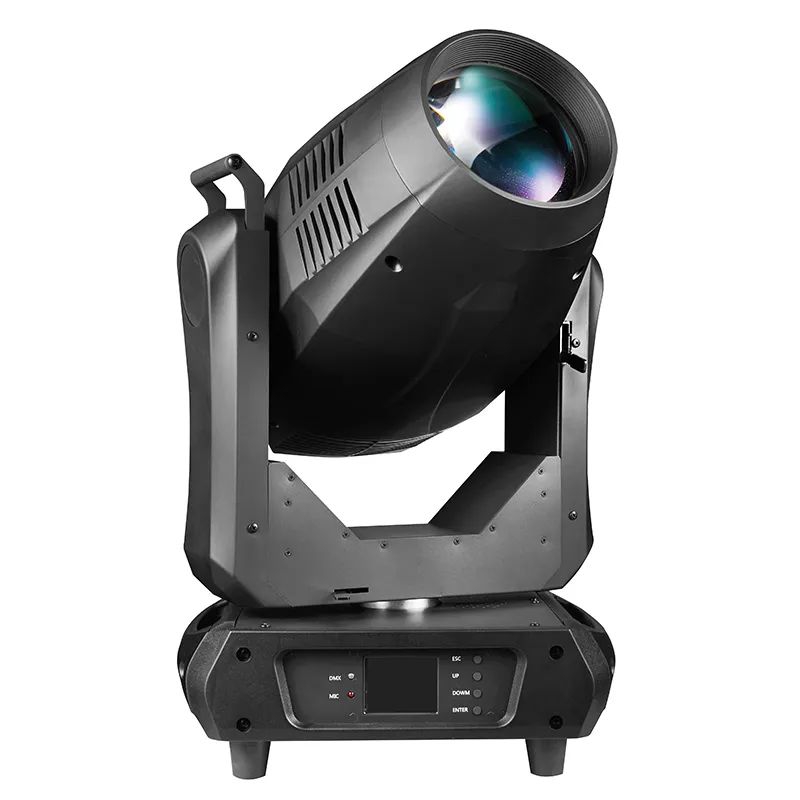

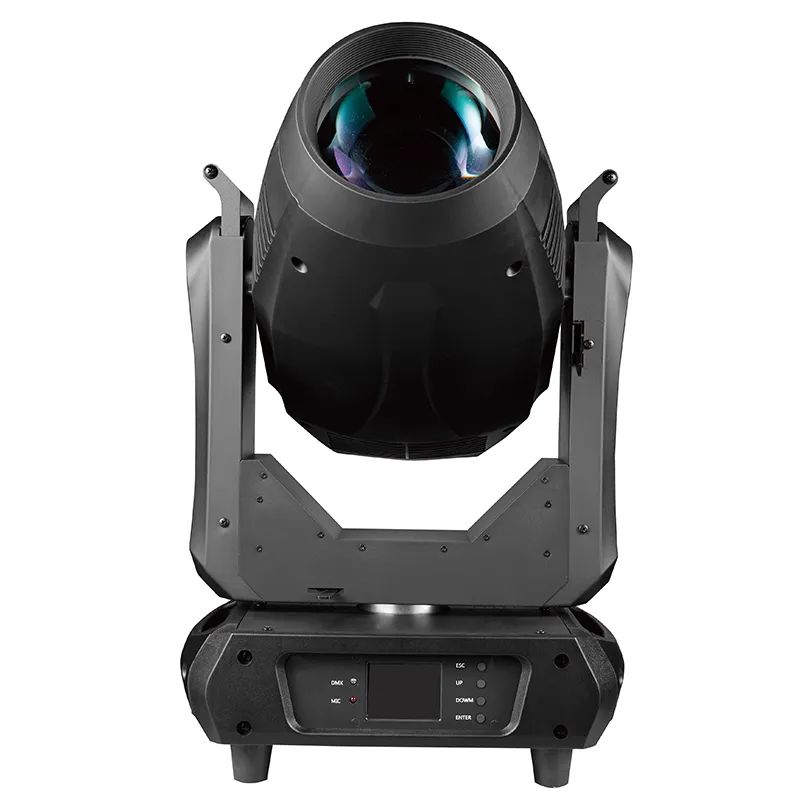

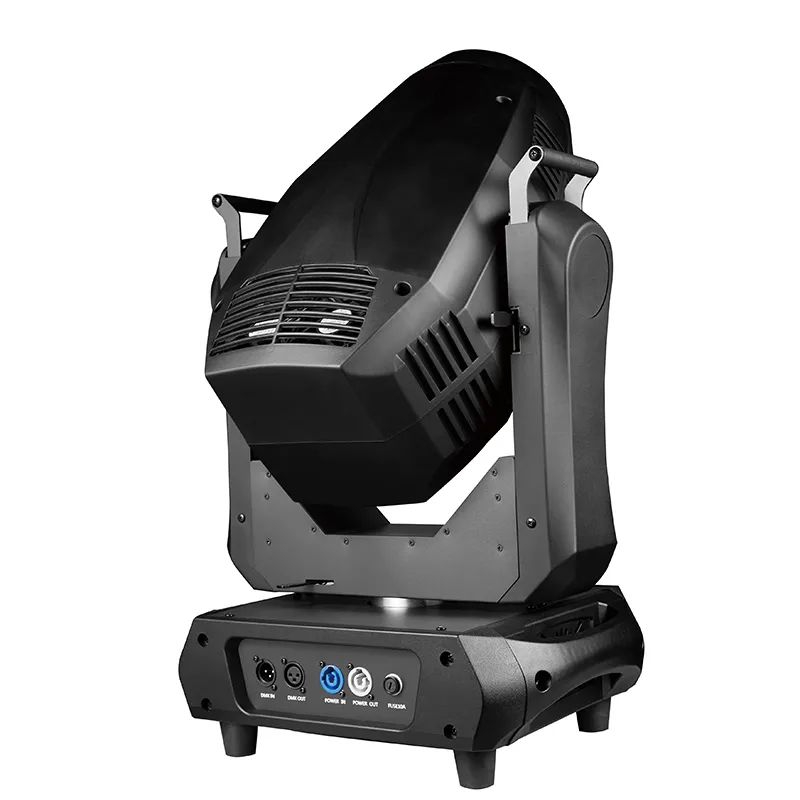

500W LED Profile/Hybirds MOVING HEAD

1. Input voltage / frequency: AC100-240V, 50 / 60Hz;

2. Power supply power: 600W;

3. Rated power: 500W;

4. Light source: 400 W LED module light source, color temperature: 8000K, average life: about 20,000 hours;

5.X/Y: X 540°16 Bit; Y 270°16 Bit;

7. 4 individually positionable blades with ±45°rotation of the complete framing system

Iris

8. Atomization: 1 independent atomizing mirror, linear atomization, perfect soft light effect;

9. Strobe: 1-20 Times / s

10. Dimming: 0-100% linear dimming

11. Color wheel: 1 color wheel, 7 colors + 1 white, with full color and half color effect, bidirectional rotation of the rainbow effect; CTO can make the color temperature continuously adjusted between 3200K-8000K;

12.CMY System: professional grade CMY mixed color system, can mix an infinite variety of colors;

13. Rotation wheeel: 1 rotation gobo wheel, including 7 removable glass rotation pattern plate and 1 white circle, with pattern shaking, positioning, and two-way variable speed rotation effect;

14. zoom angle: 5-55° linear scaling;

15. Display: 2.8-inch color touch screen + button;

16. Signal input and output: DMX512 signal;3pin signal line;

17.DMX Channel mode: 26CH, with the console reset function;

18. Control mode: DMX, RDM, manual;

19. Power supply input: POWERCON socket;

20. Net weight: 23kg;

21. Gross weight: 26kg;

22. size: L390 * W 302 * H667mm;

23. Packing size: L490 * W 402 * H767mm;

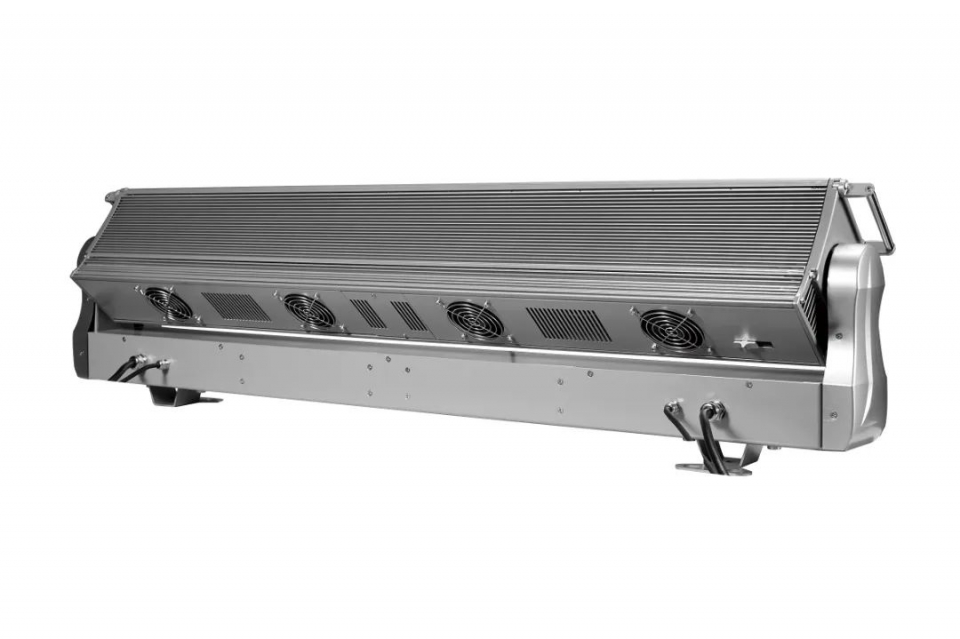

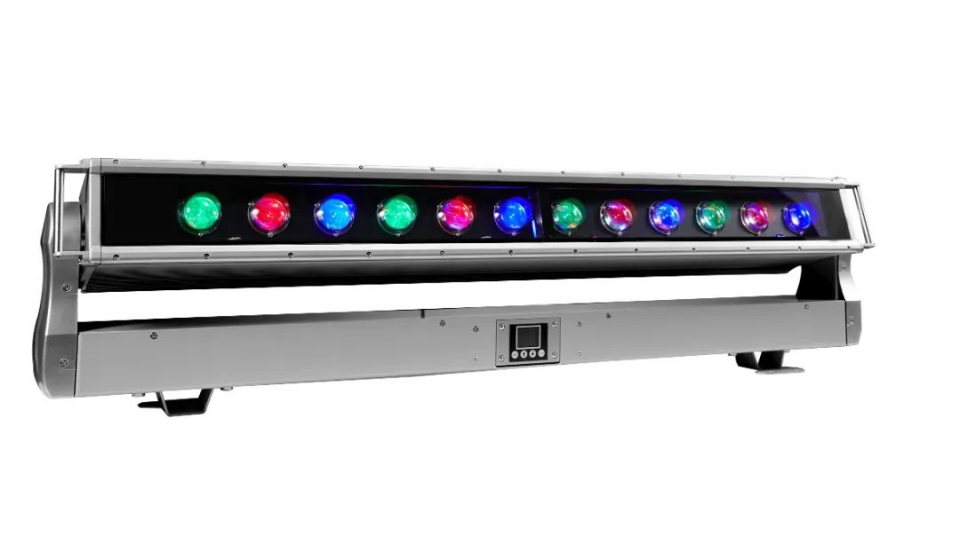

Light source: 12 pcs 40W OSRAM 4 in 1 (4 color red/green/blue/white)

life: 50000 hours

Feature

Dimming: linear adjustment

Stroboscopic: 1 ~ 25 times per second

Light effect: with wash and beam function. Even light spot, running liquid effect

Temperature control: When the working temperature of the LED is overheated, the power of the lamp bead will slowly decrease to the half power state. When the temperature is lower than the set temperature, the power of the lamp bead will slowly return to the normal state.

Overtemperature protection: built-in NTC temperature control function. When the temperature exceeds the set temperature, the LED will stop working.

Optical system: light guide column with high efficient light transmission convex mirror

Zoom range: 4.7° ~ 60° linear zoom

Color temperature: There is an independent color temperature control lever, color temperature from 10000K to 2700K linear focus

Stepper motor: Vertical scanning adopts three-phase stepper motor, micro-step operation, complete micro-processing control, and 4 special focusing motors for linear adjustment

Bulb refrigeration: forming aluminum mold + waterproof fan for efficient heat dissipation, the head has a temperature detection probe, real-time monitoring LED temperature, when the temperature detection probe detected the temperature of 85 degrees.

(Source: Provided by Guangzhou UPLIGHT)
